Painting Process

Powder Coating Line

This case highlights our painting system solutions, showcasing projects that deliver balanced airflow, consistent coating quality, and clean finishing results. Each system is designed to meet specific production needs while prioritizing efficiency, flexibility, and long-term operational reliability.

Powder & Wet Paint Booth
Project Location:

Malaysia

Year Manufacturing:

2025

Purpose:
Booth for Air blow cleaning, wet coating (brushing painting only), powder coating & polishing
Special Feature:
Quick-access cartridge filter cover, sliding folding door, motorized fire damper, dust collector tray, and full pulsing system for the filter.

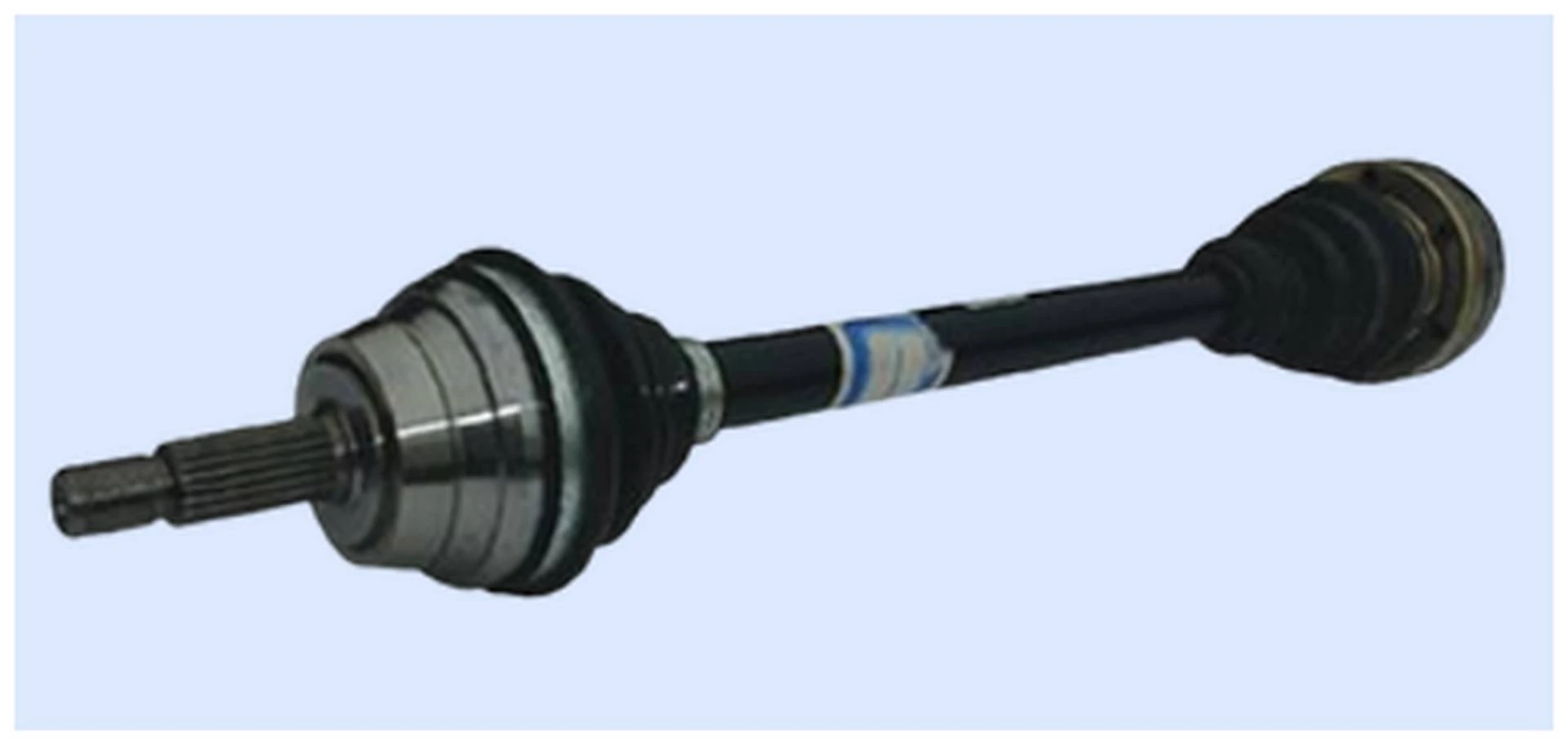

Drive Shaft Powder Coating Line 4

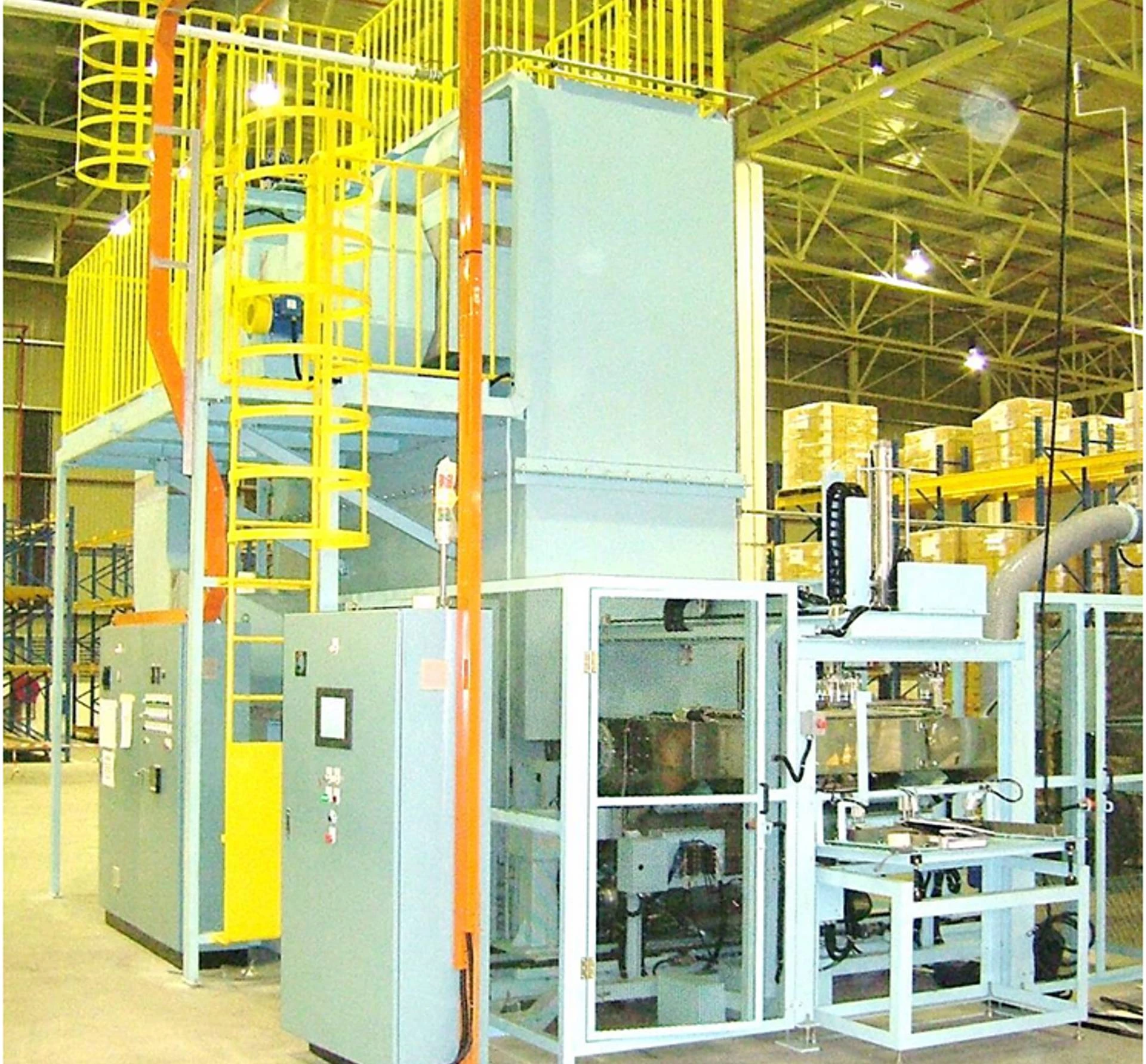

Drive Shaft Powder Coating Line 1

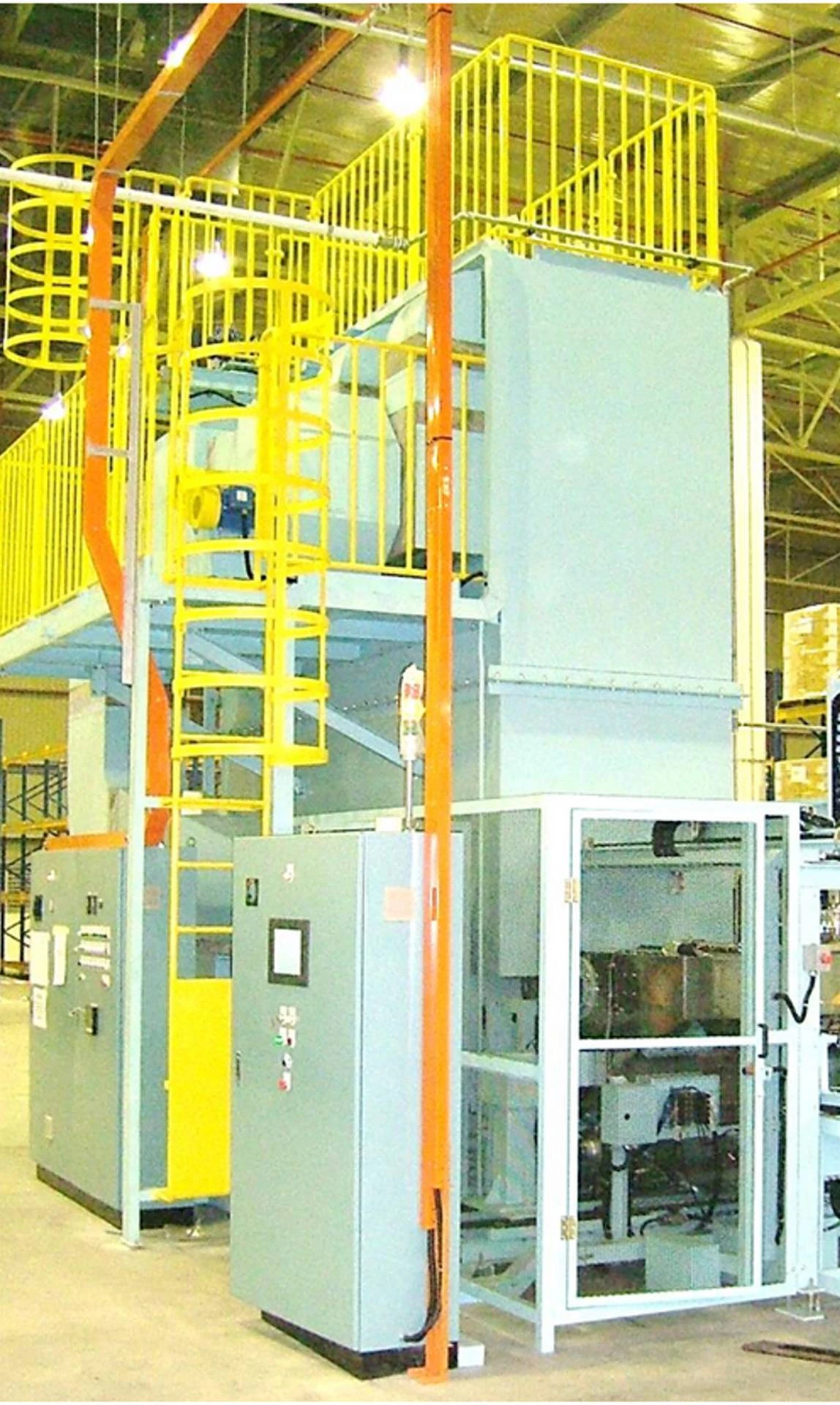

Drive Shaft Powder Coating Line 2

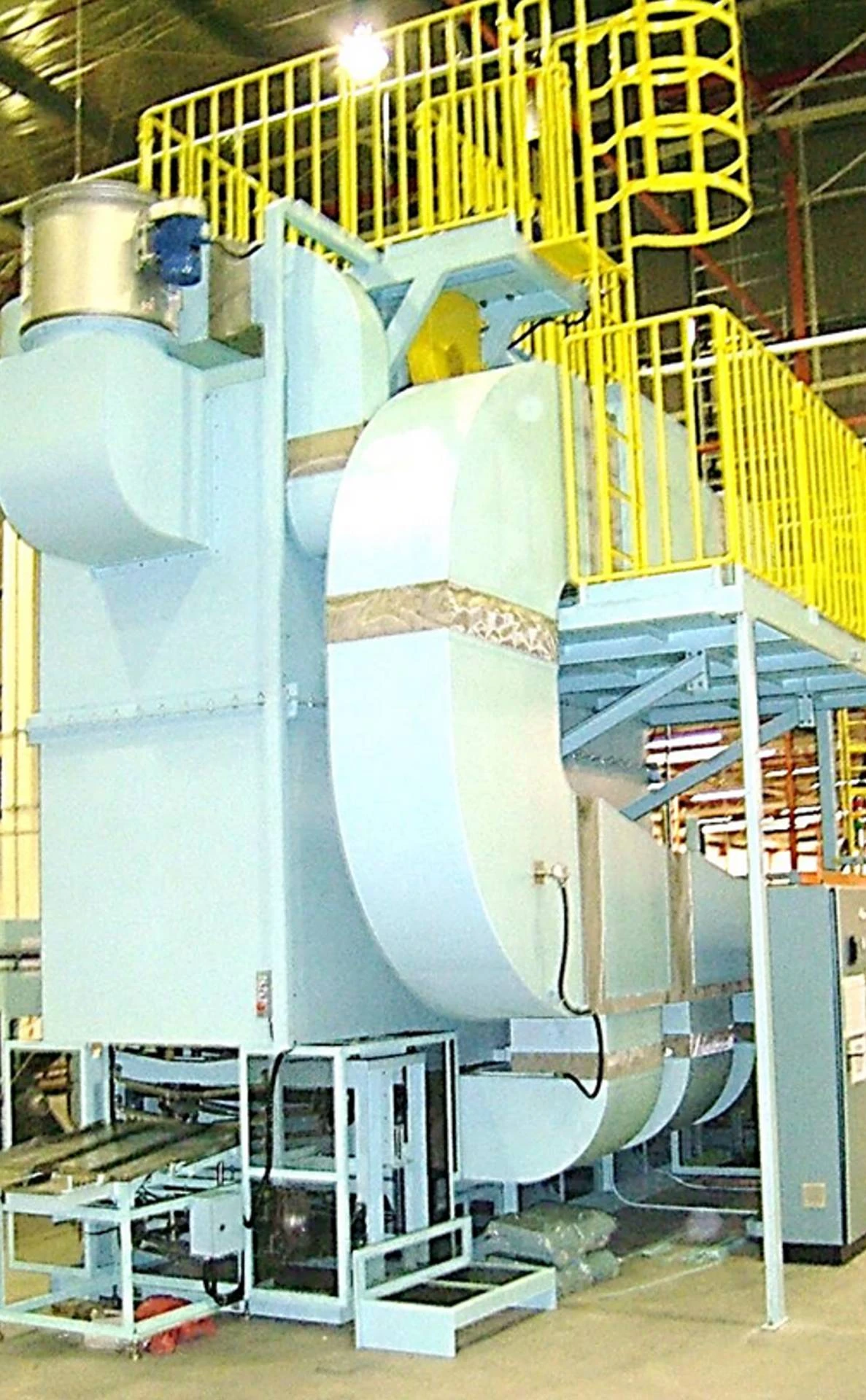

Drive Shaft Powder Coating Line 3
Drive Shaft Powder Coating Line
Project Location:

Malaysia

Year Manufacturing:

2007

Purpose:
Powder coating for automotive drive shaft
Special Feature:
Auto transfer from coating booth to vertical oven

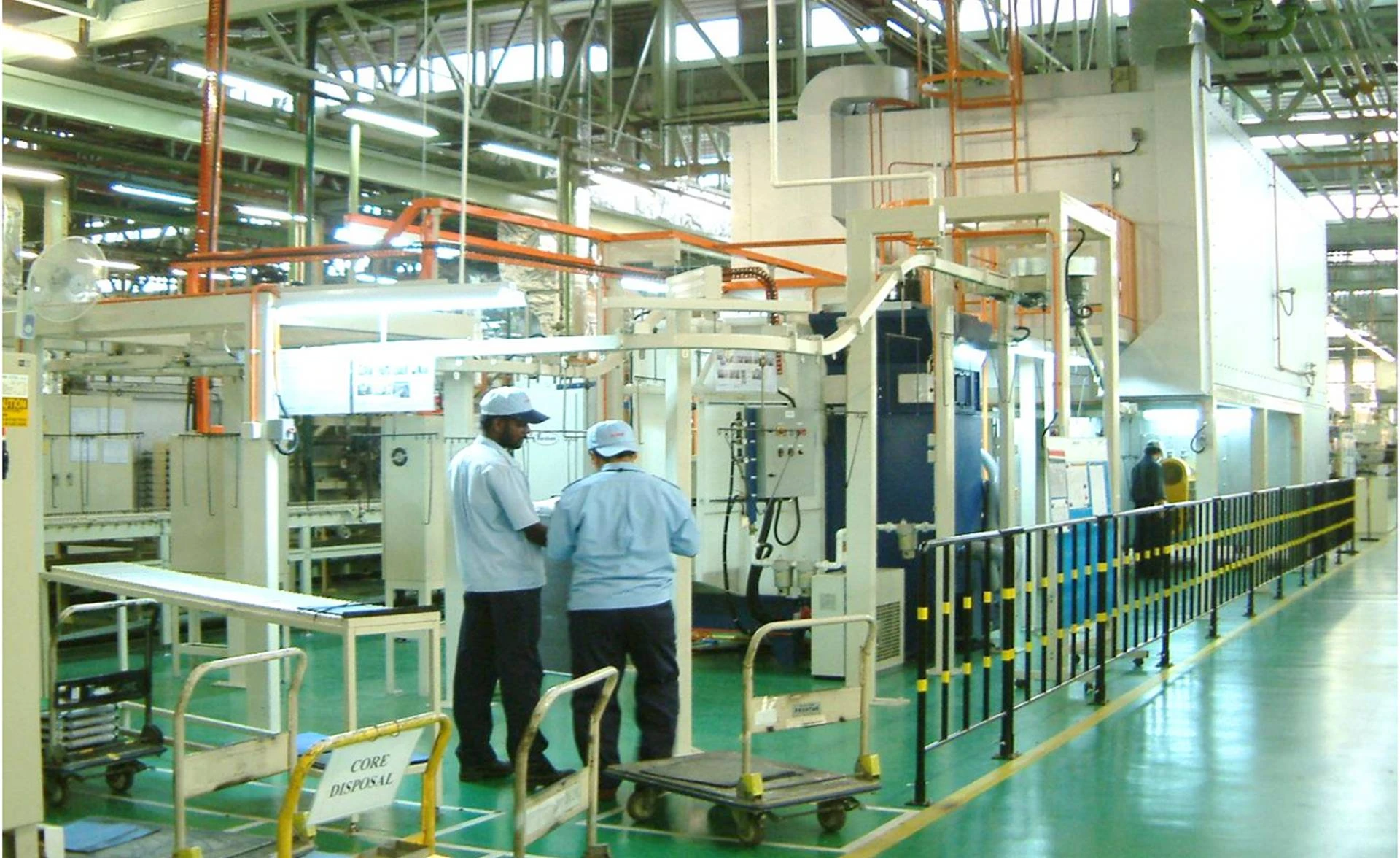

Radiator Powder Coating Line 1

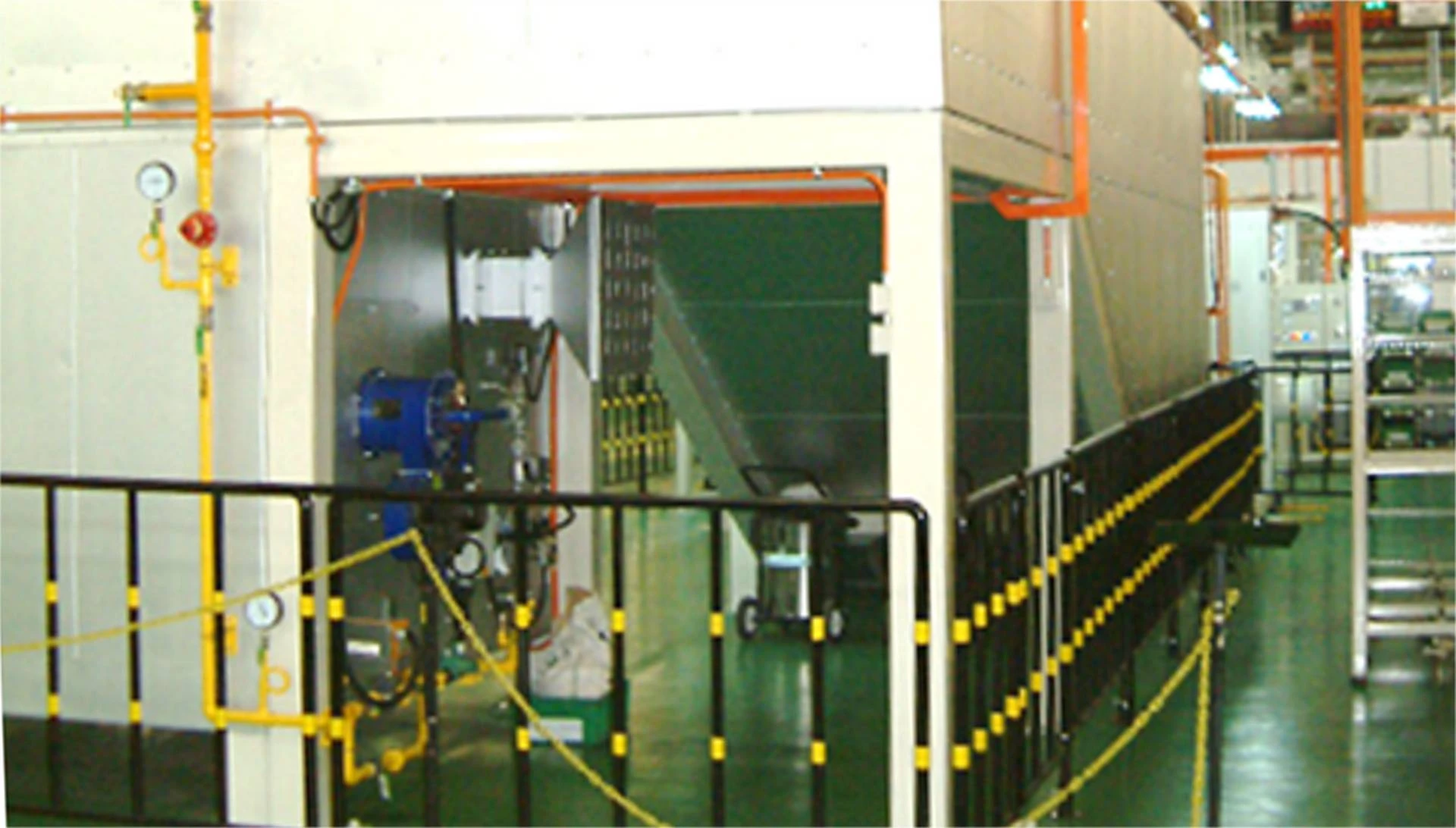

Radiator Powder Coating Line 2
Radiator Powder Coating Line 3
Radiator Powder Coating Line
Project Location:

Malaysia

Year Manufacturing:

2004

Purpose:
Powder coat for car radiator
Special Feature:
Simple & compact painting line

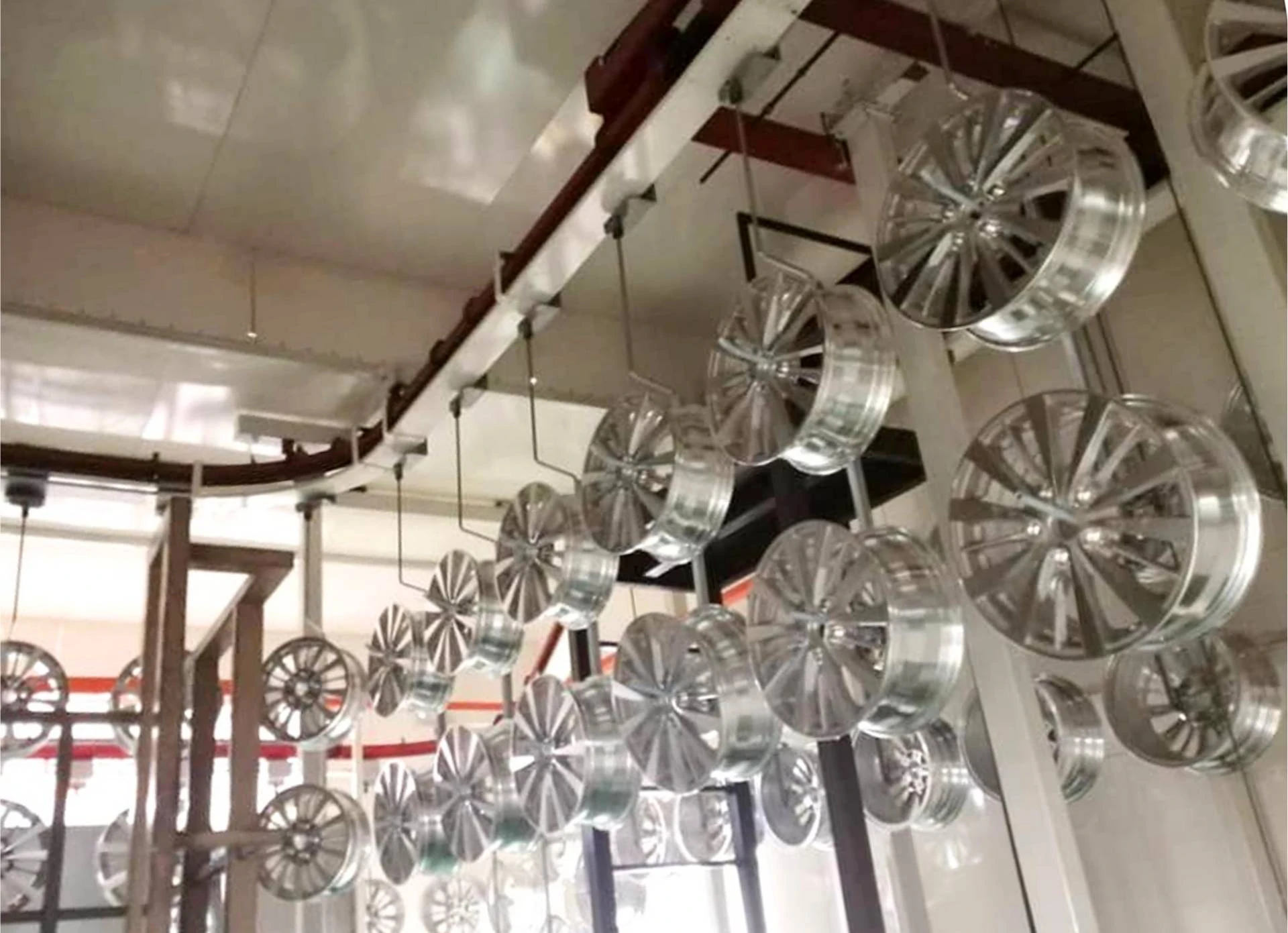

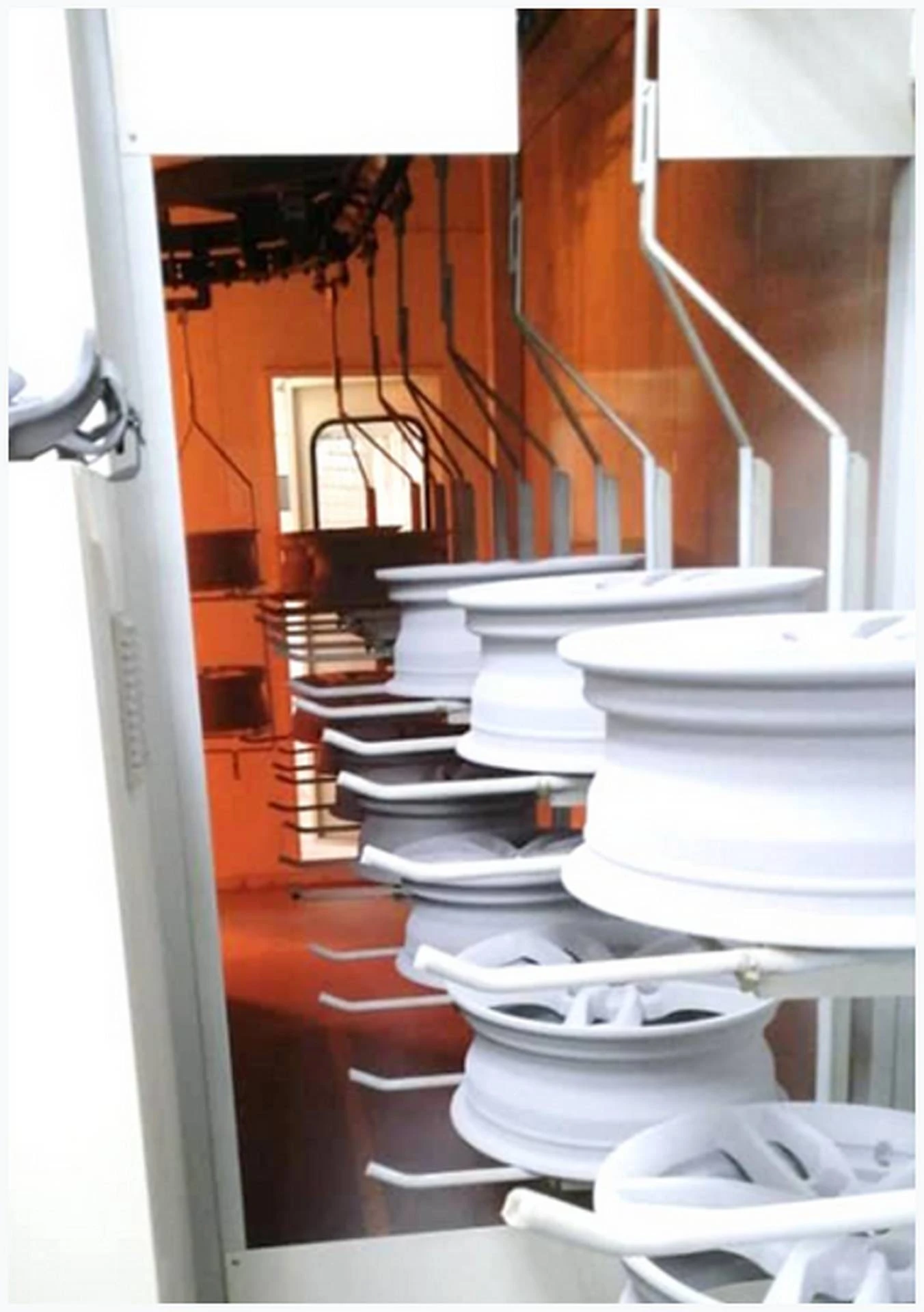

Rim Wheel Powder Coating Line 2
Rim Wheel Powder Coating Line 1
Rim Wheel Powder Coating Line
Project Location:

Malaysia

Year Manufacturing:

2016

Purpose:
Powder coating for automotive rim wheel
Special Feature:
Including pretreatment, powder coating, oven & OHC system

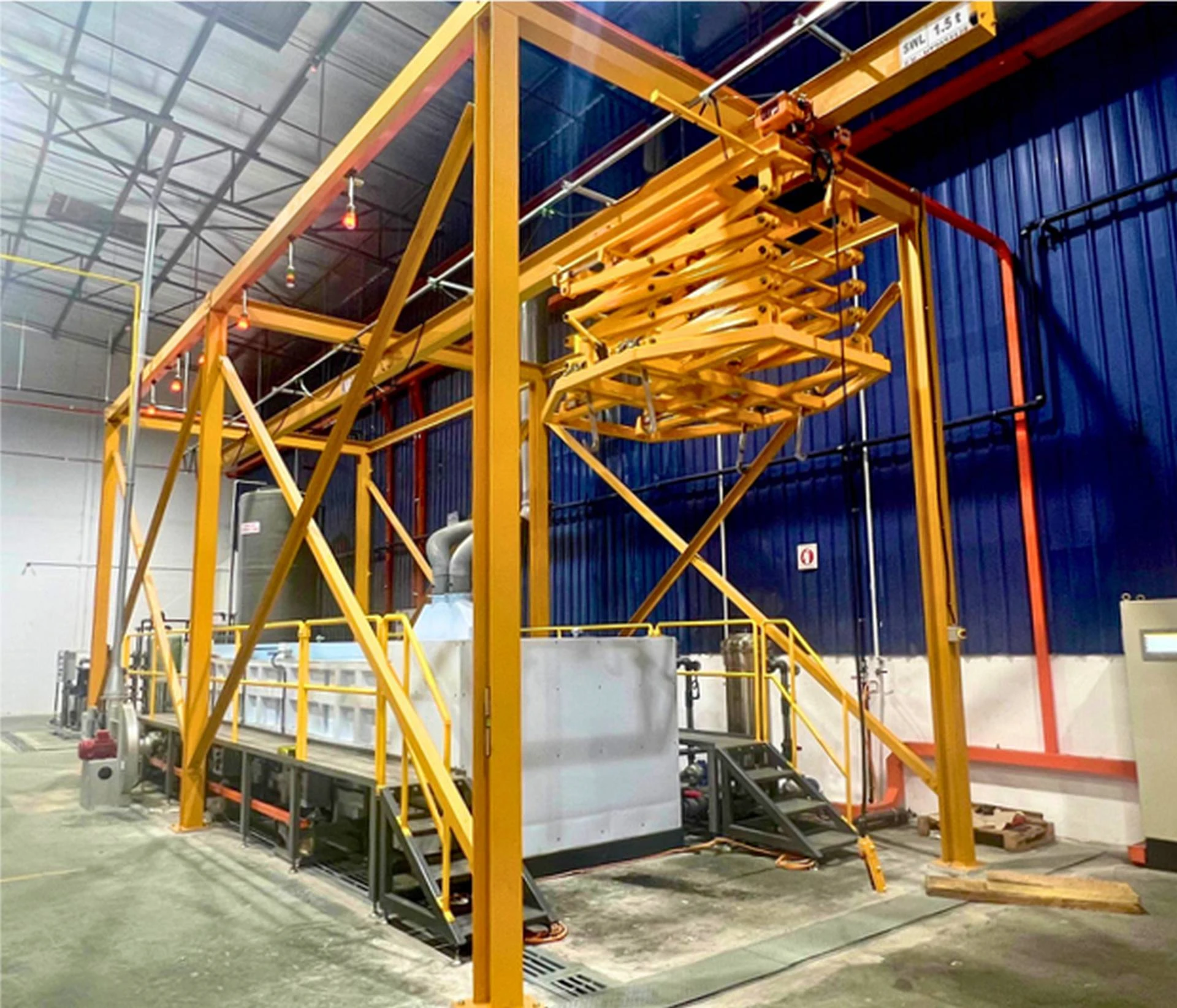

5.Paint Shop Systems 3

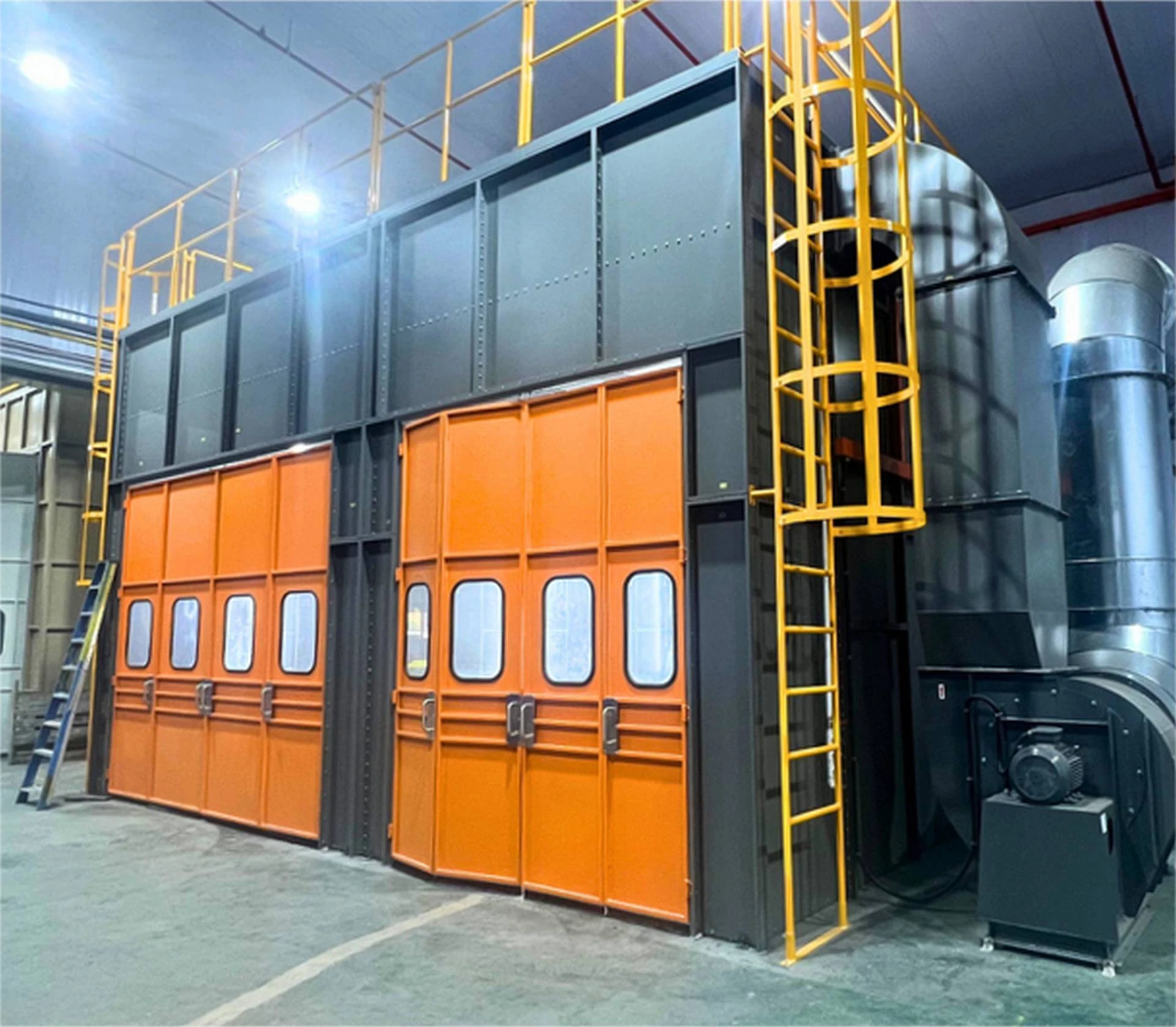

5.Paint Shop Systems 2
5.Paint Shop Systems 1

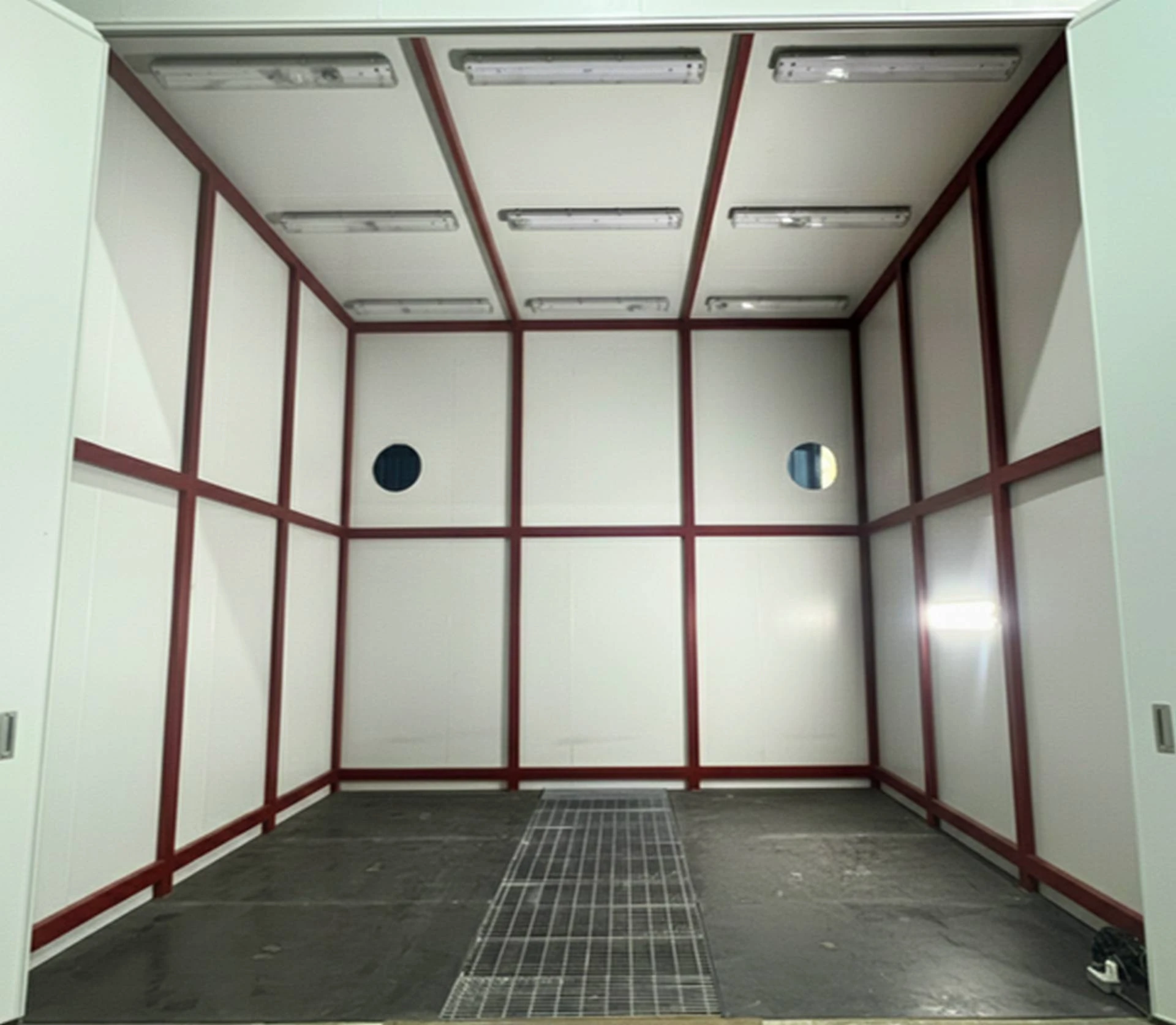

5.Paint Shop Systems 4
Paint Shop Systems (Powder & Wet)
Project Location:

Malaysia

Year Manufacturing:

2024

Purpose:
Surface Finishing System for various steel part
Special Feature:
Including pretreatment, Blasting Booth, Powder Coating, Wet Paint, Drying & Curing Oven

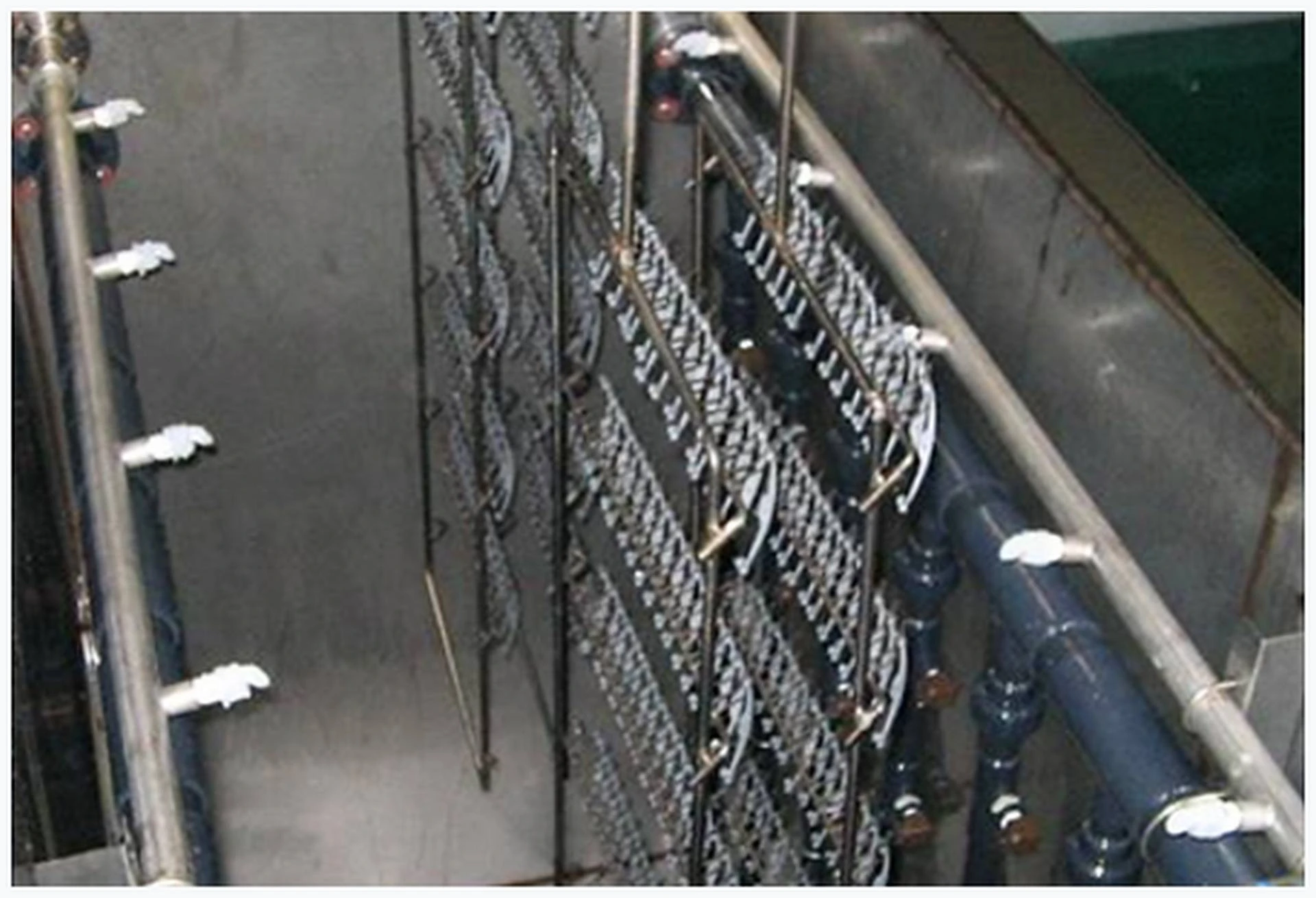

powder coating line (wiper) 2

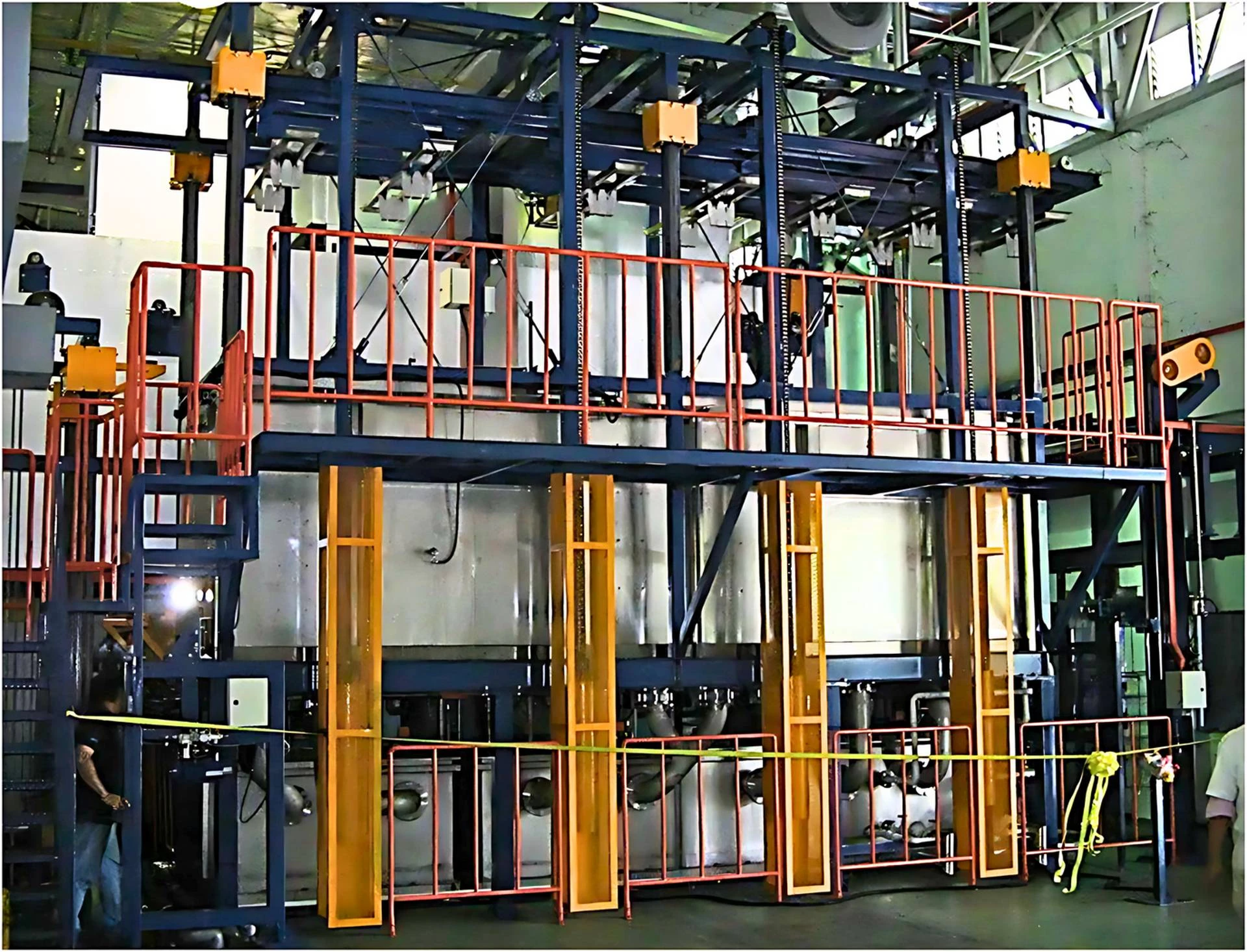

powder coating line (wiper) 1
CW Power Coating Line
Project Location:

Malaysia

Year Manufacturing:

2006

Purpose:
Pretreatment, powder coat & drying process for automotive wiper.
Special Feature:
Fully auto transfer from pretreatment plant to dry off oven with extreme low foot print.

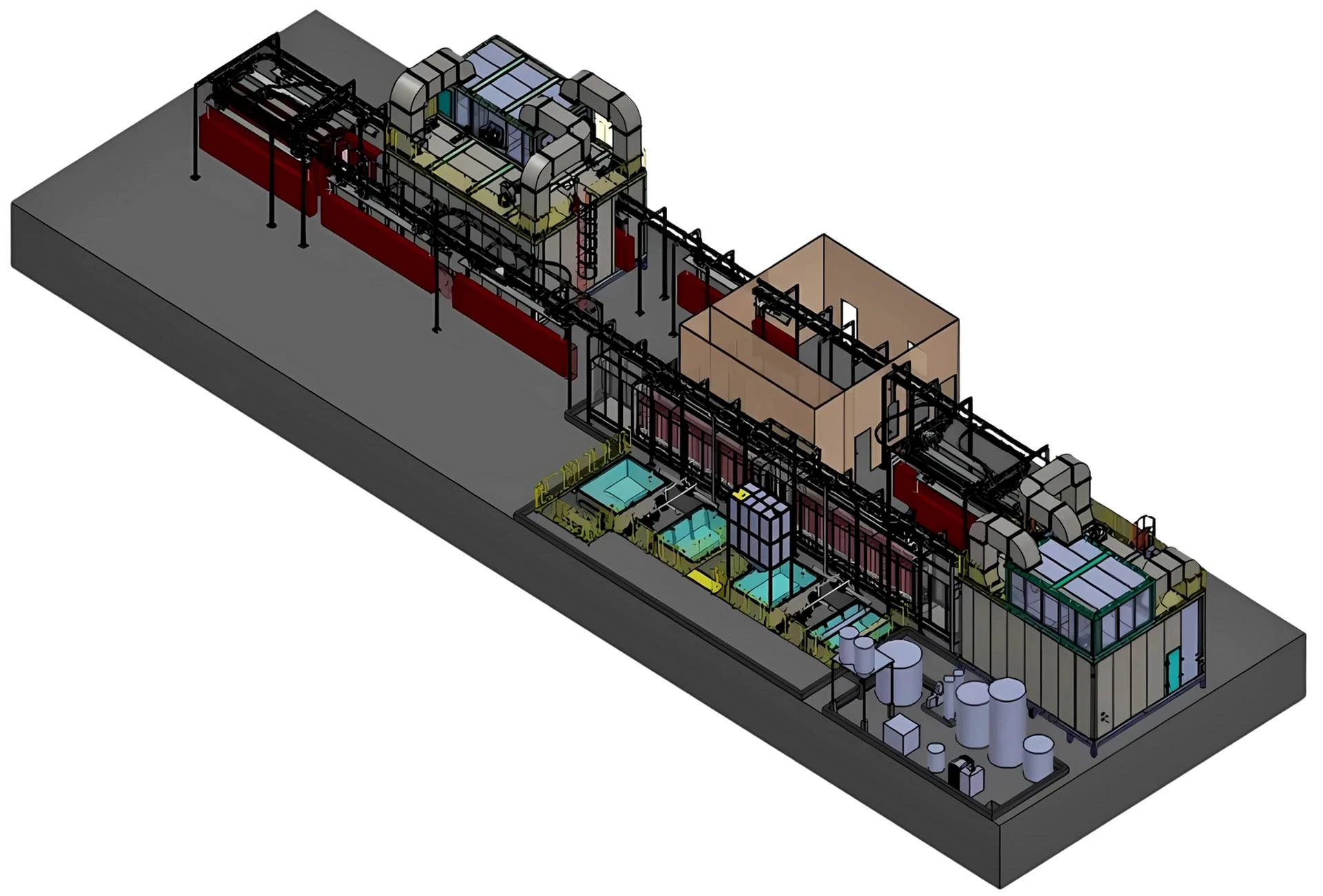

Pipe Powder coating Line 5

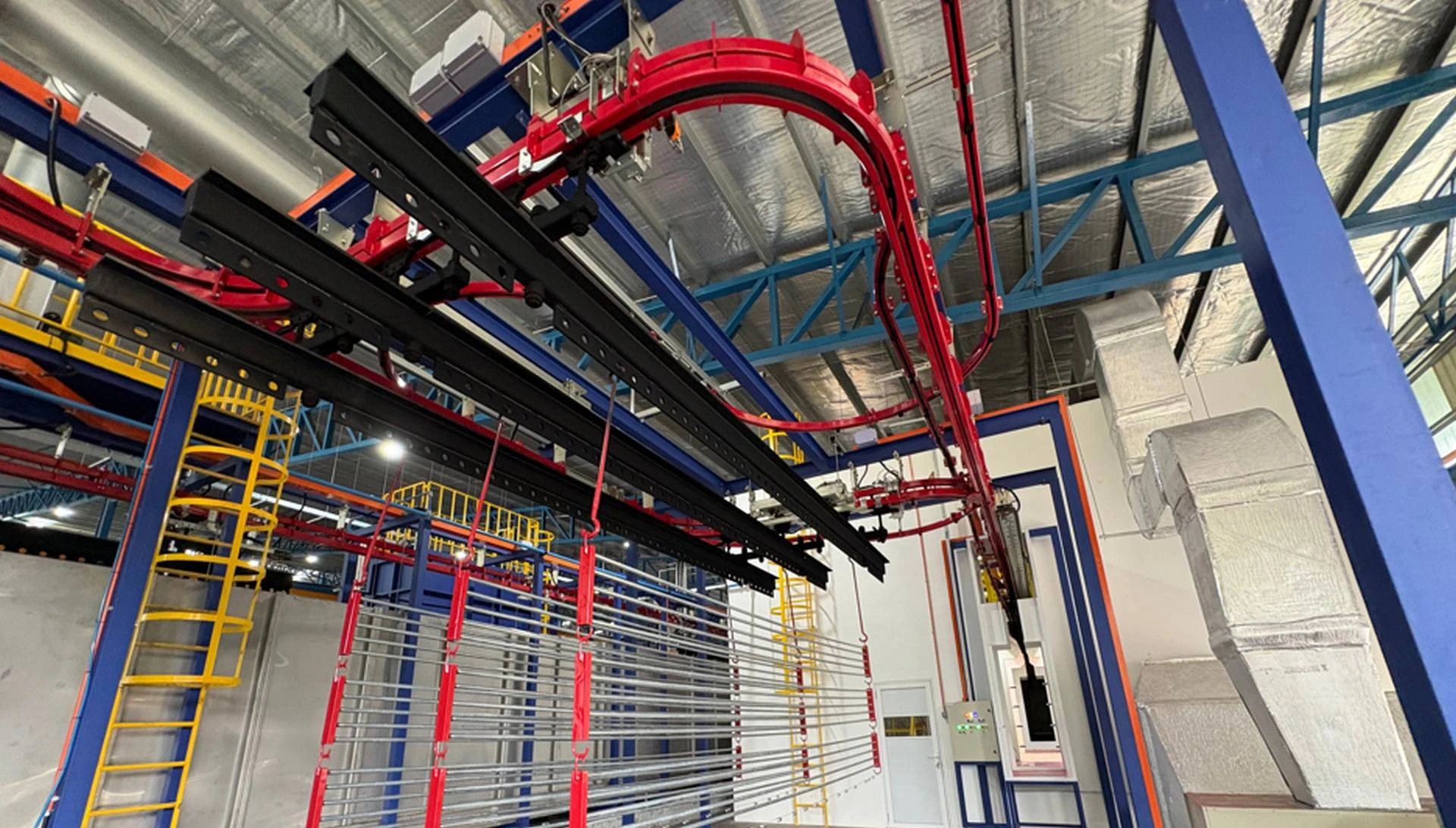

Pipe Powder coating Line 6

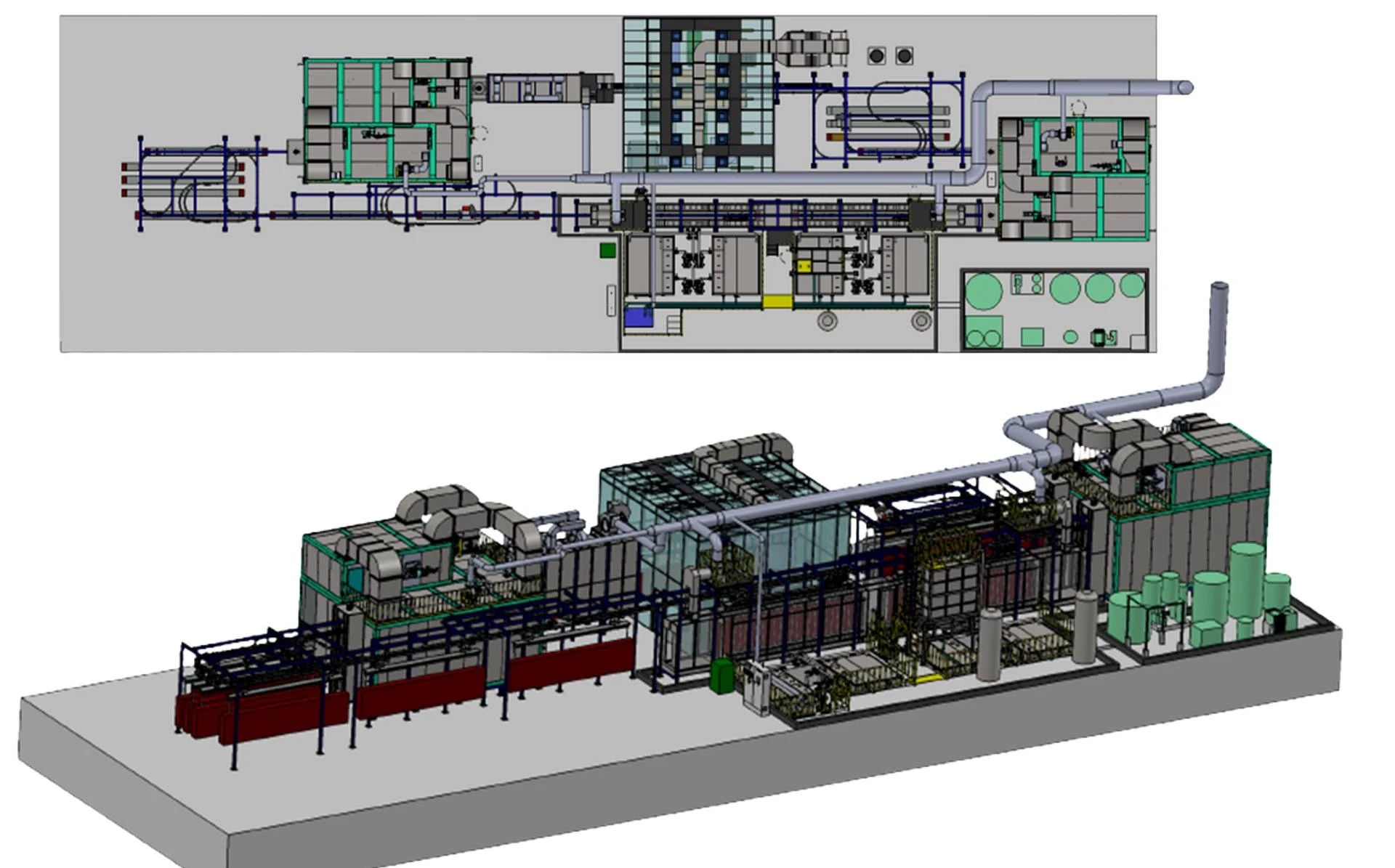

Pipe Powder coating Line 1

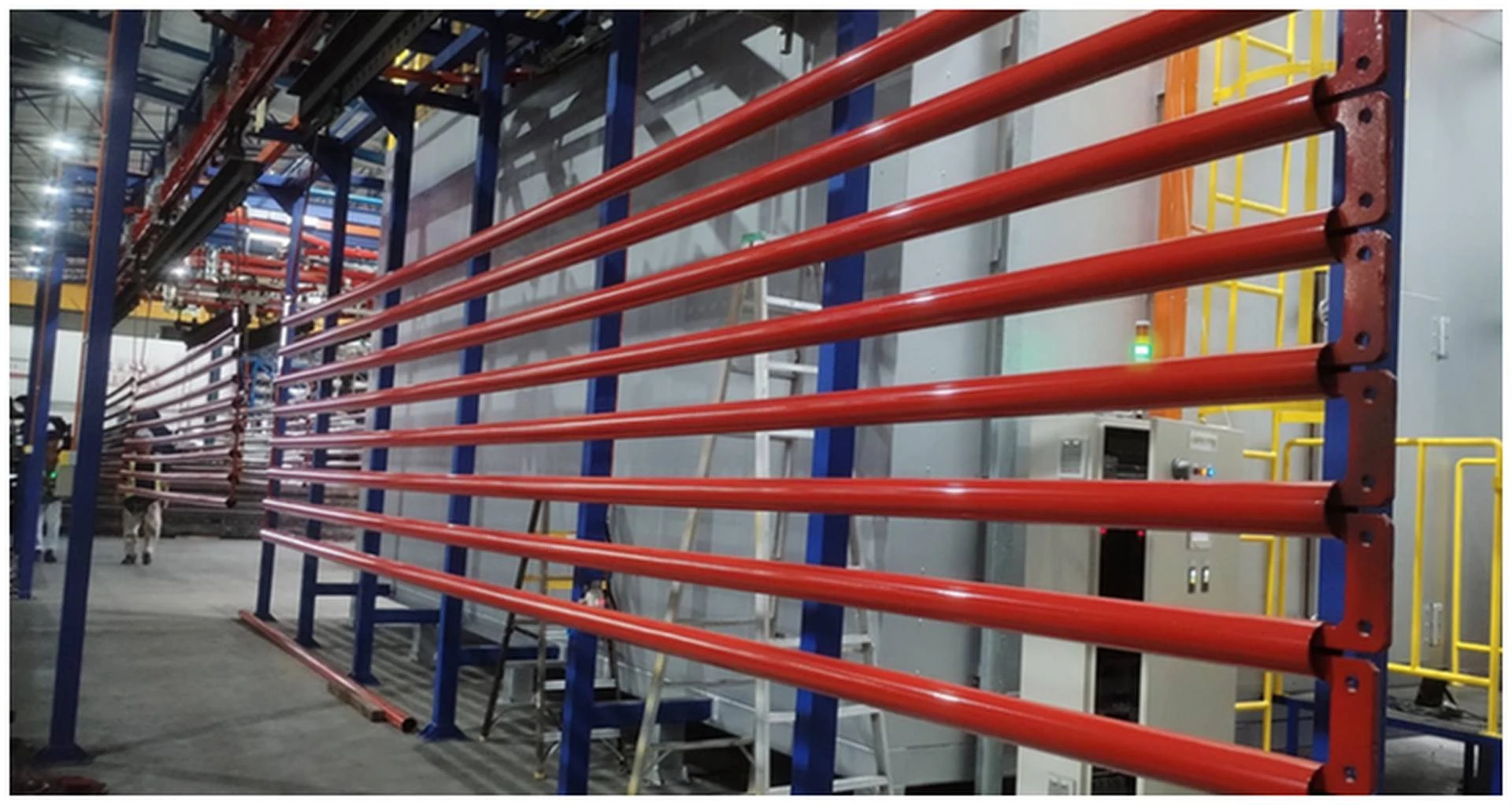

Pipe Powder coating Line 2

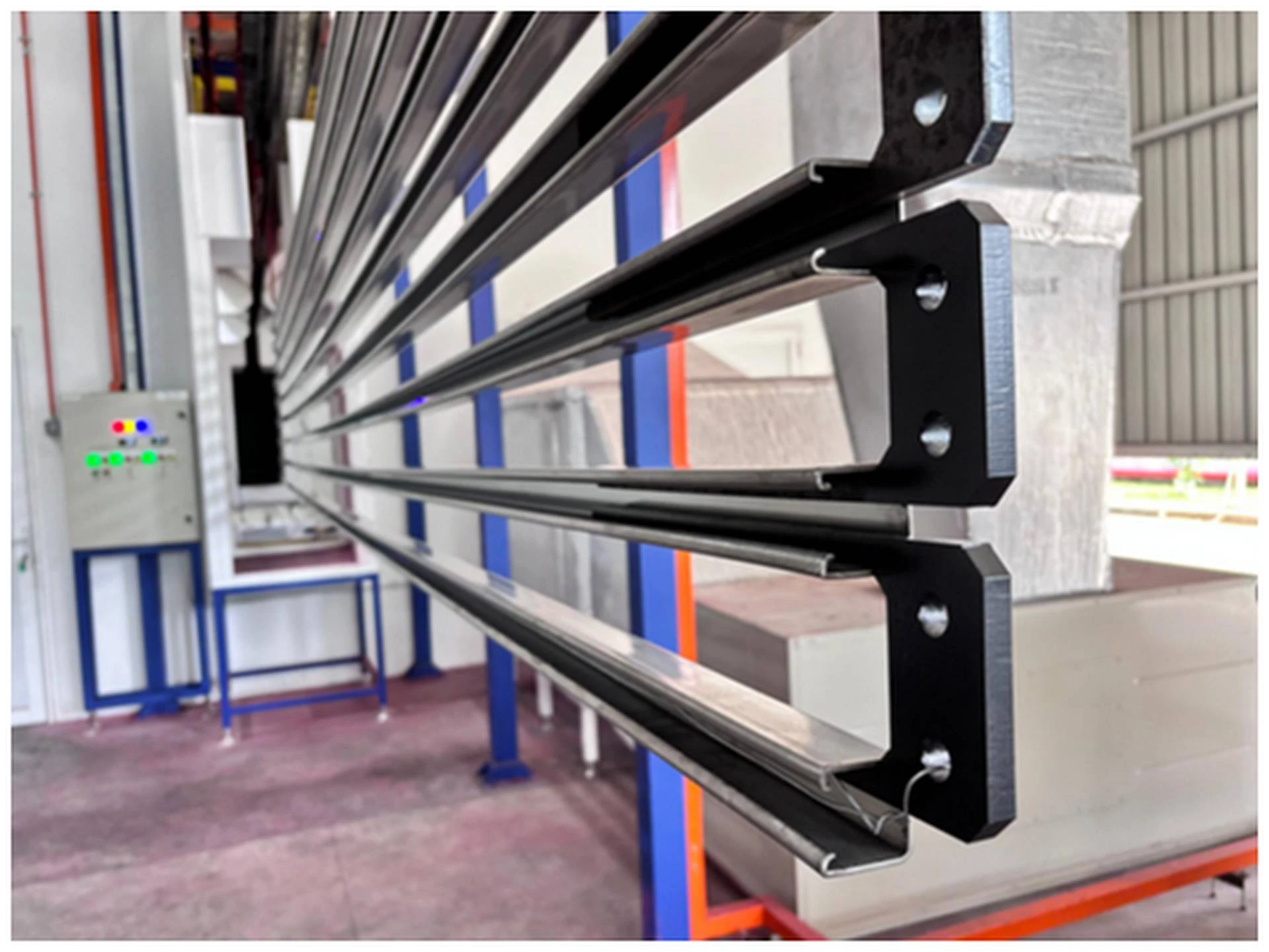

Pipe Powder coating Line 3

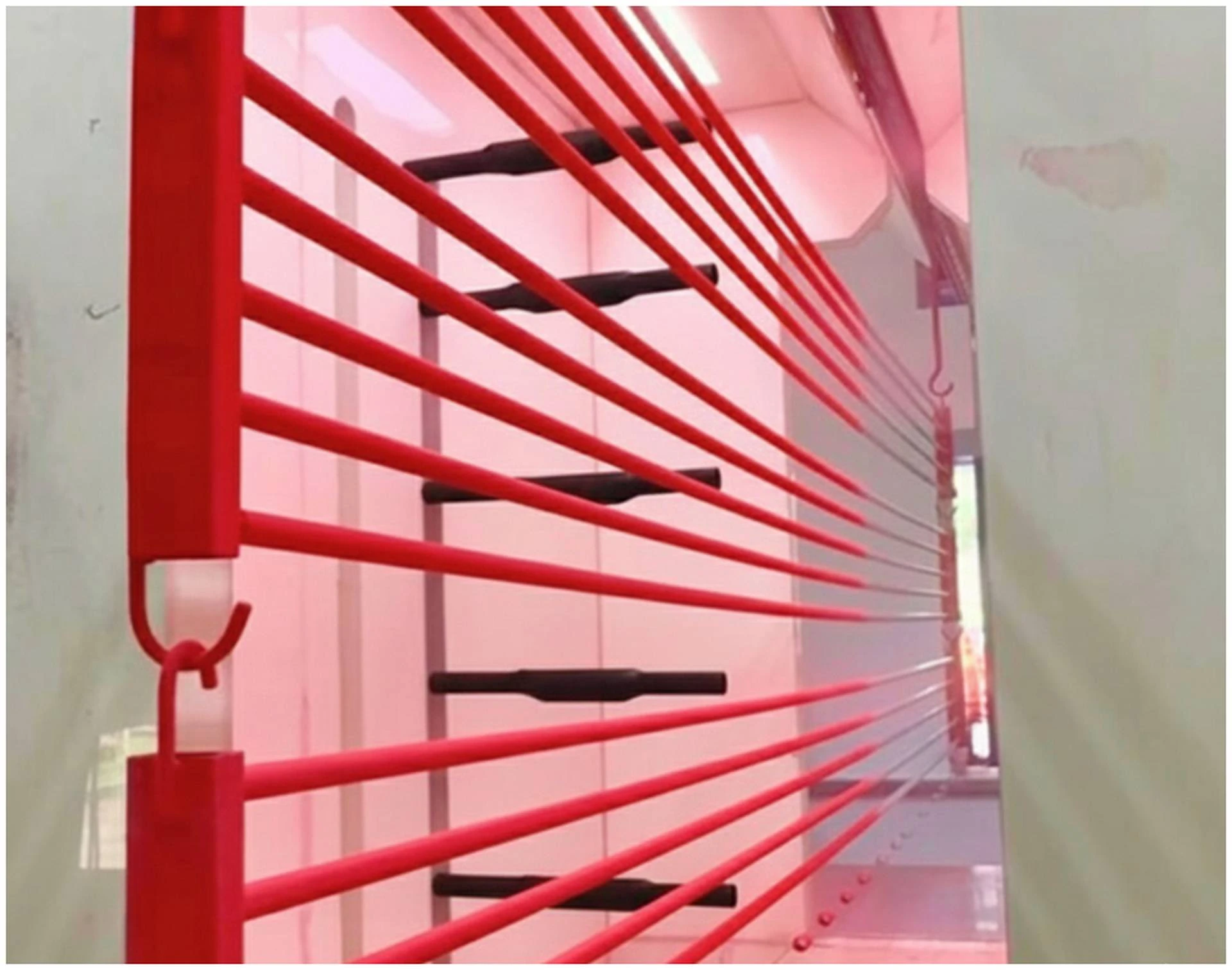

Pipe Powder coating Line 4
Cw Pipe Powder Coating Line
Project Location:

Malaysia

Year Manufacturing:

2024

Purpose:
Powder coating for various sizes of steel pipes
Special Feature:
Including pretreatment, powder coating, oven & P&F system

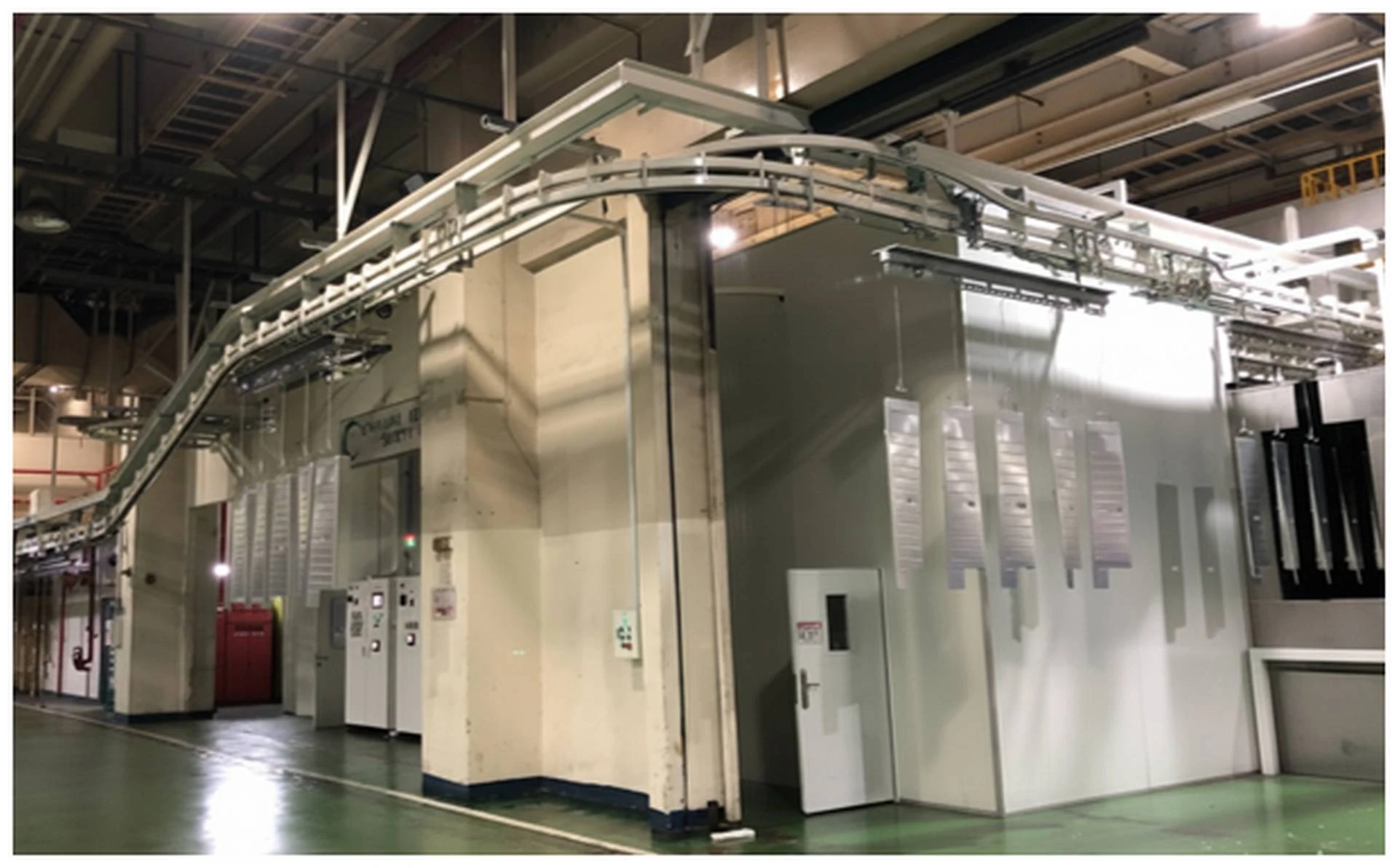

Powder Coating Line 3

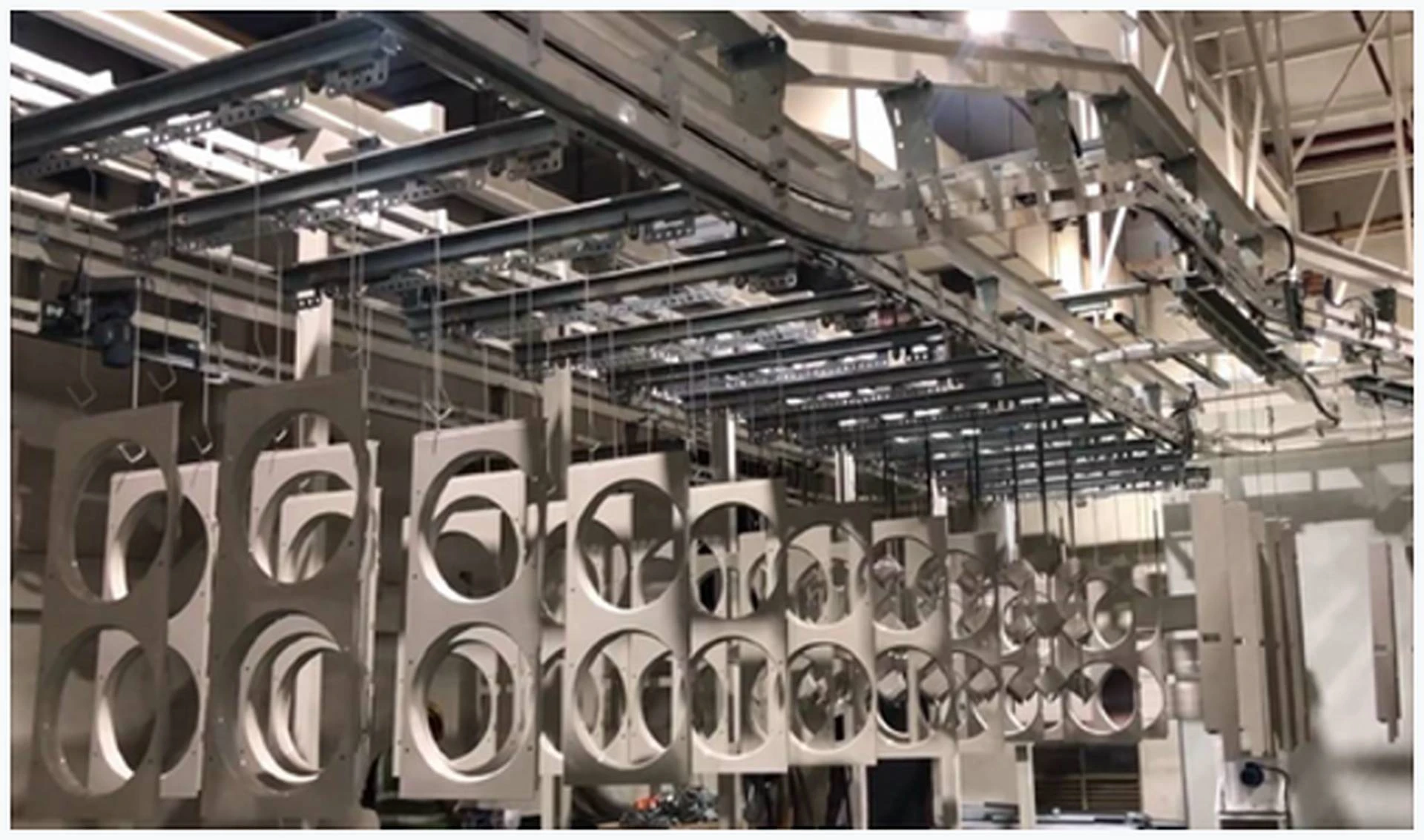

Powder Coating Line 2
Powder Coating Line 1
Powder Coating Line
Project Location:

Malaysia

Year Manufacturing:

2022

Purpose:
Pretreatment + powder coating plant for air conditioner parts
Special Feature:
Compact & flexibility selection of coating booth with P&F conveyor system.
Auto Painting Line car engine oil 3
Auto Painting Line car engine oil 1
Auto Painting Line car engine oil 2
Auto Painting Line Car Engine Oil Filter
Project Location:

Malaysia

Year Manufacturing:

2018

Purpose:
To powder coat engine oil filter
Special Feature:
Independent conveyors for each processes with fully automatic transfer mechanism

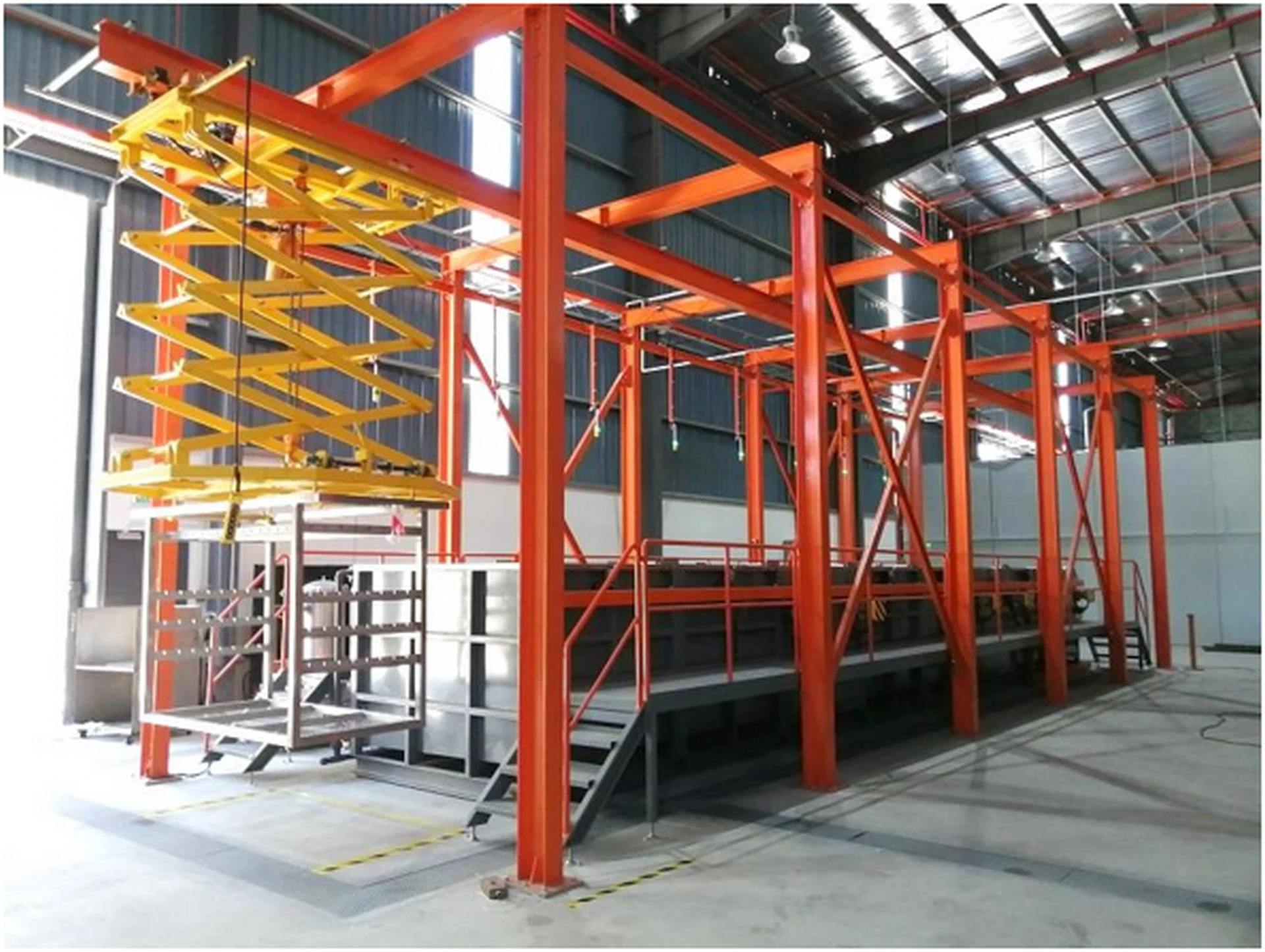

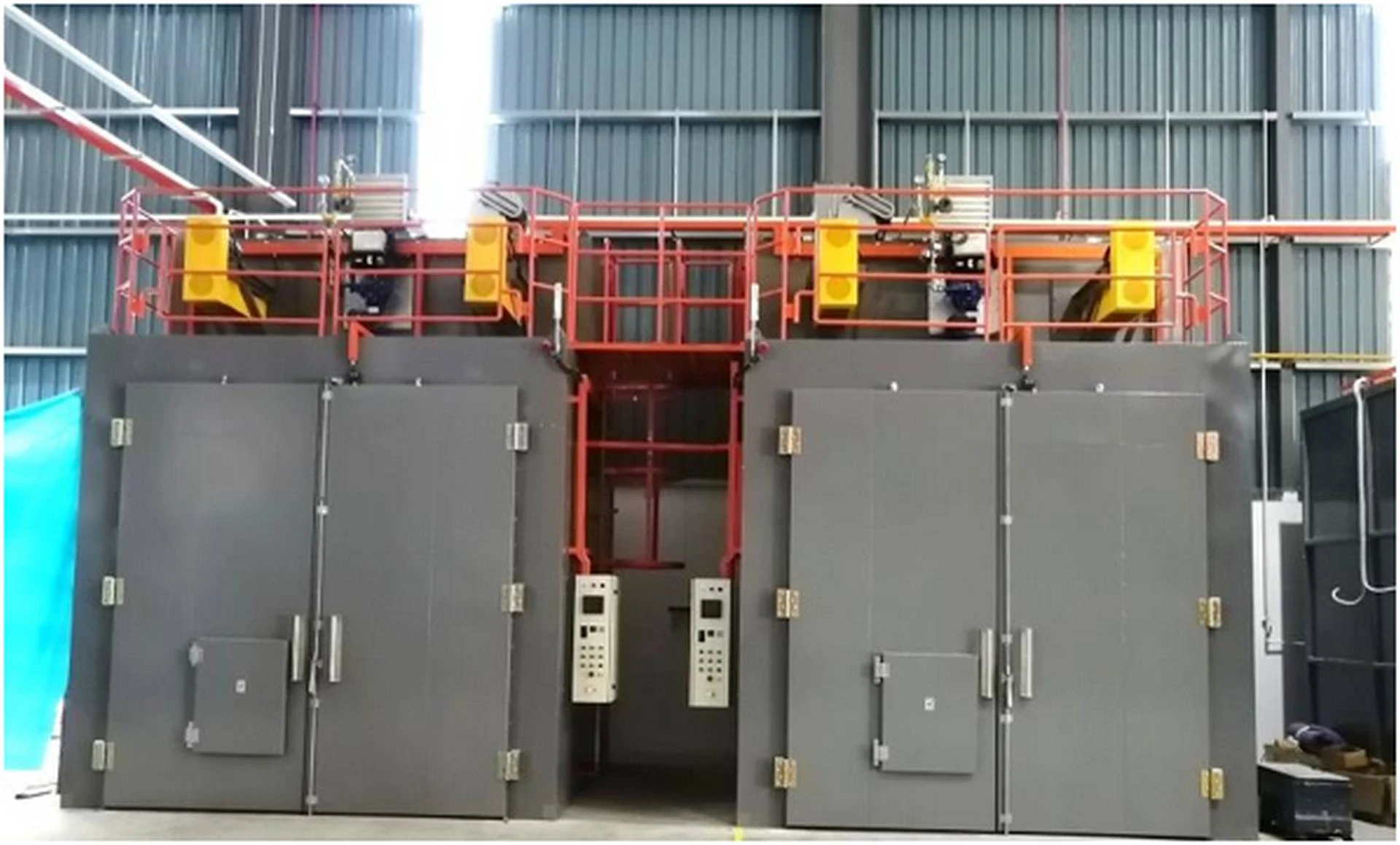

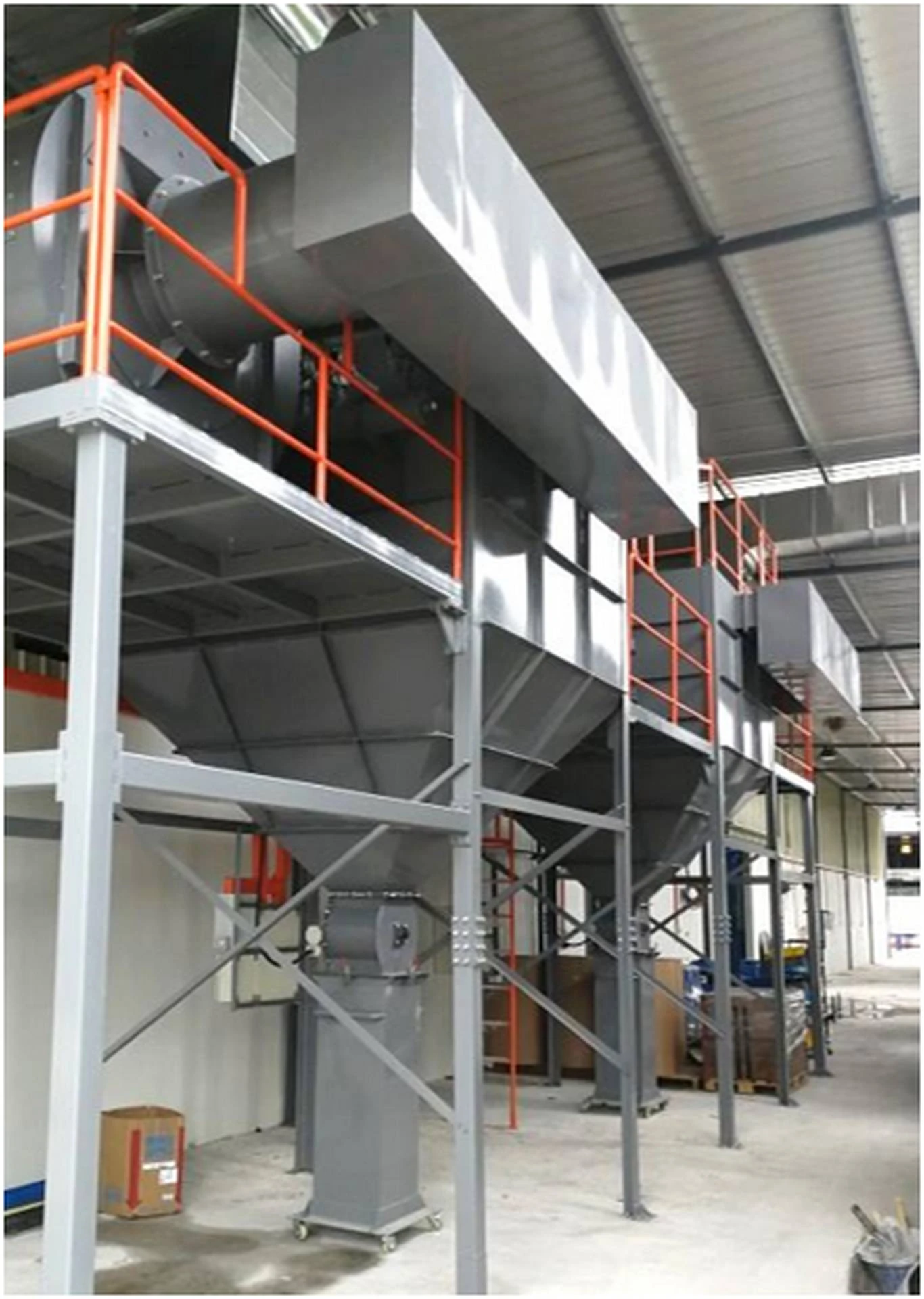

powder coating batch system 5
powder coating batch system 1

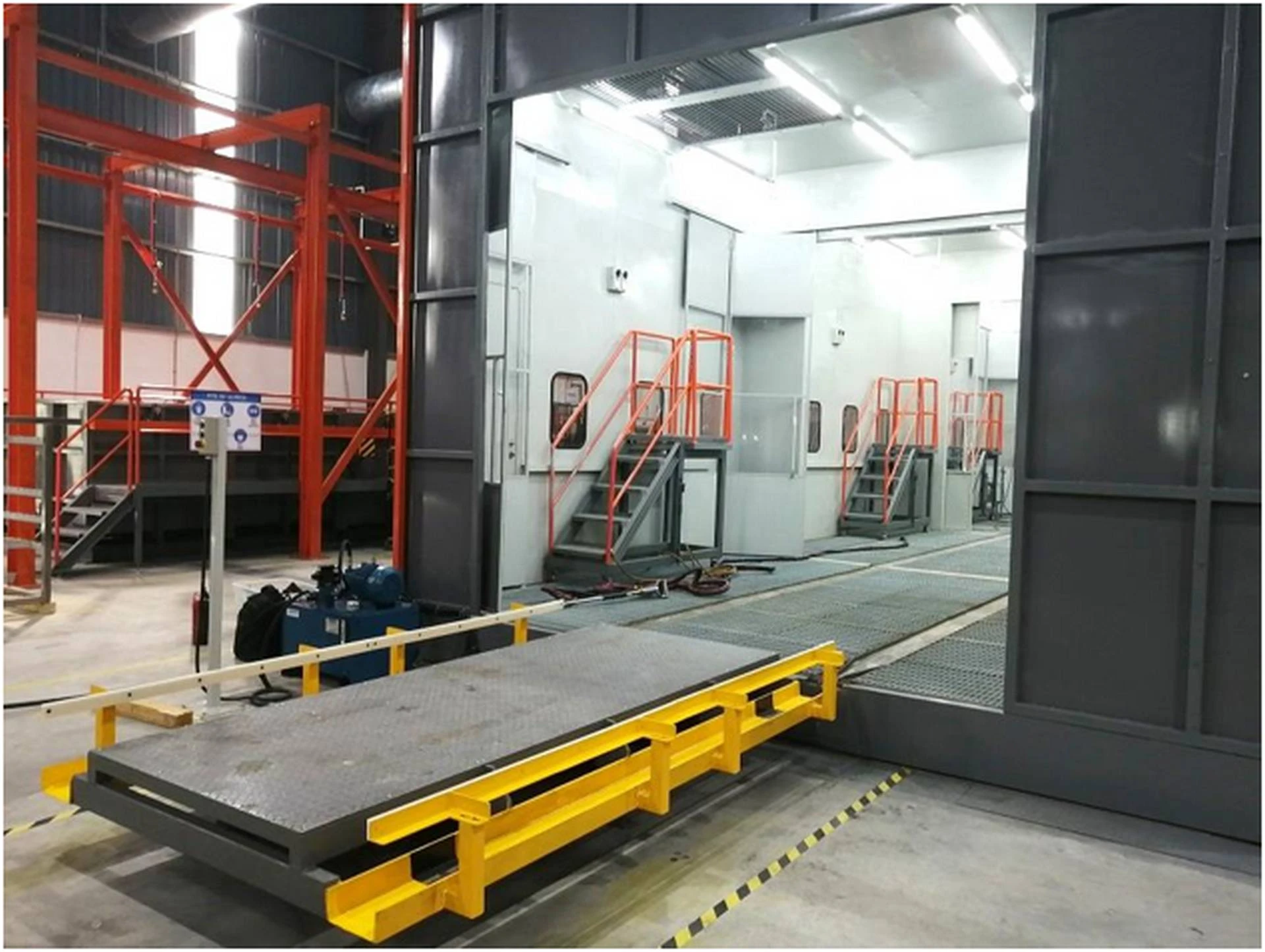

powder coating batch system 2
powder coating batch system 3

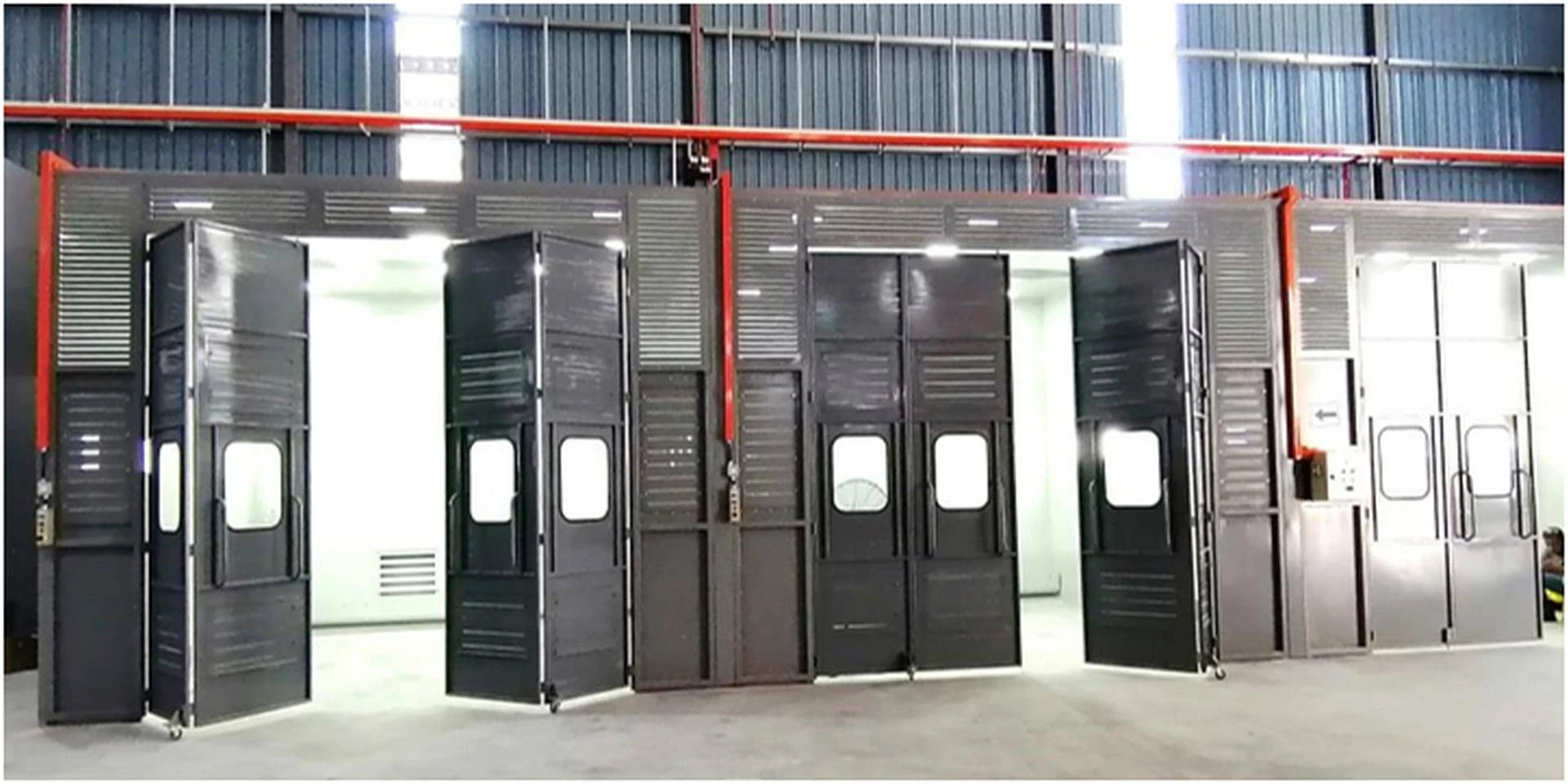

powder coating batch system 4
Powder Coating Batch System
Project Location:

Malaysia

Year Manufacturing:

2018

Purpose:
Full Powder Coating Line (Dipping/ Spray Pretreatment, Powder Booth, Curing Oven & Dust Collector) for Metal Panel & Metal Frame Structure.
Special Feature:
Designed for High Standard Coating –Especially White Glossy Finish. Oven comply AMS2750 standard
